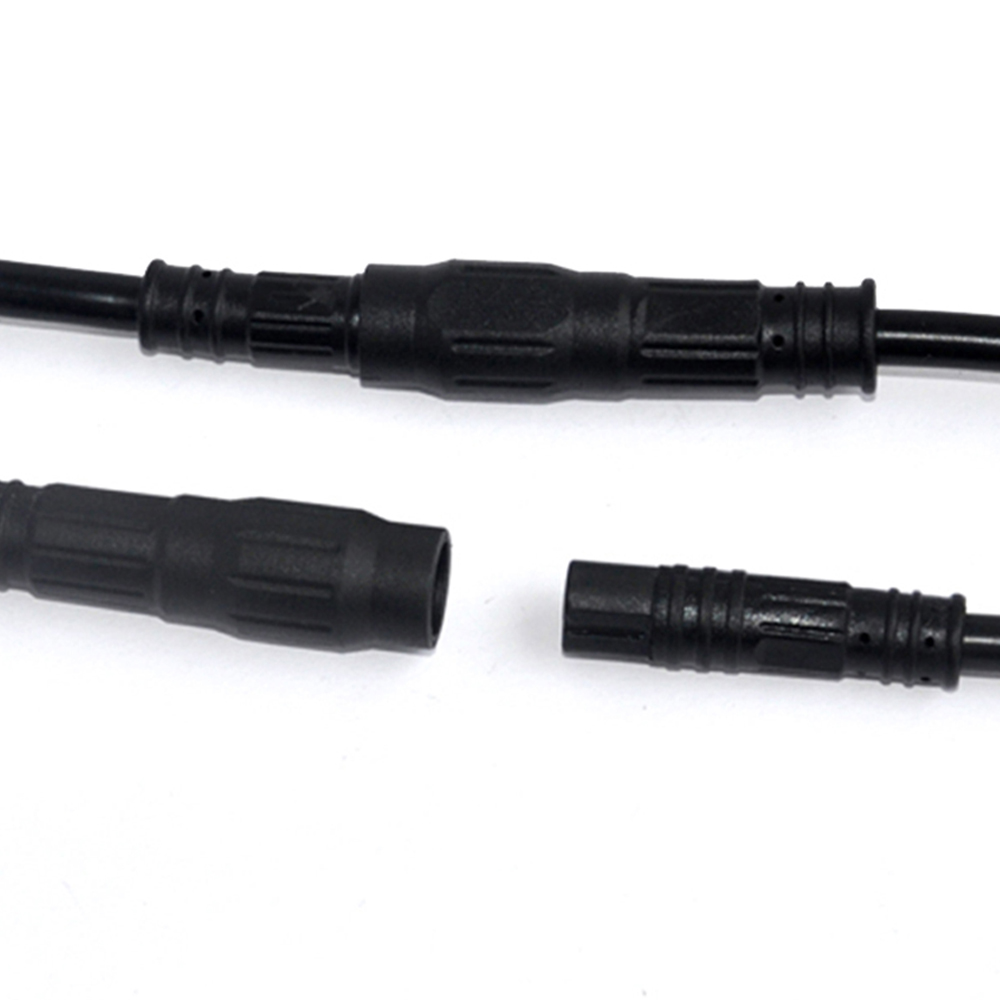

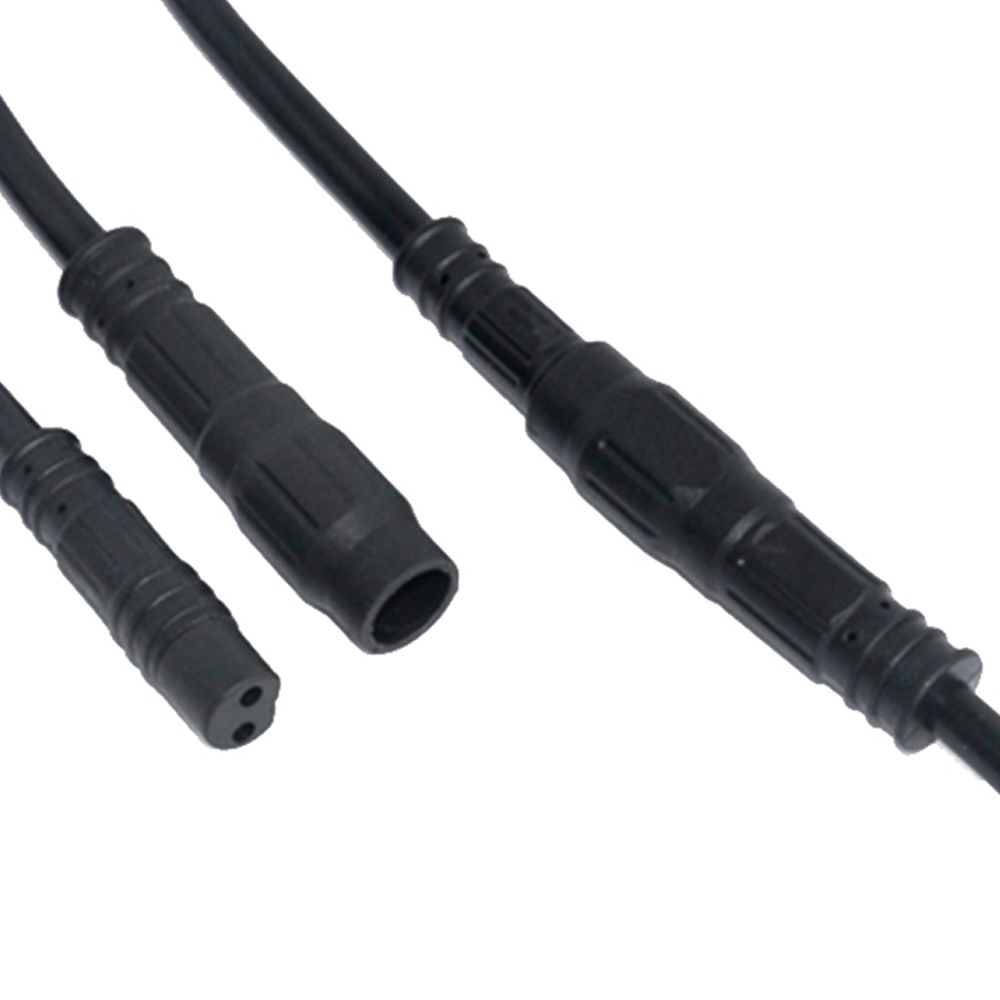

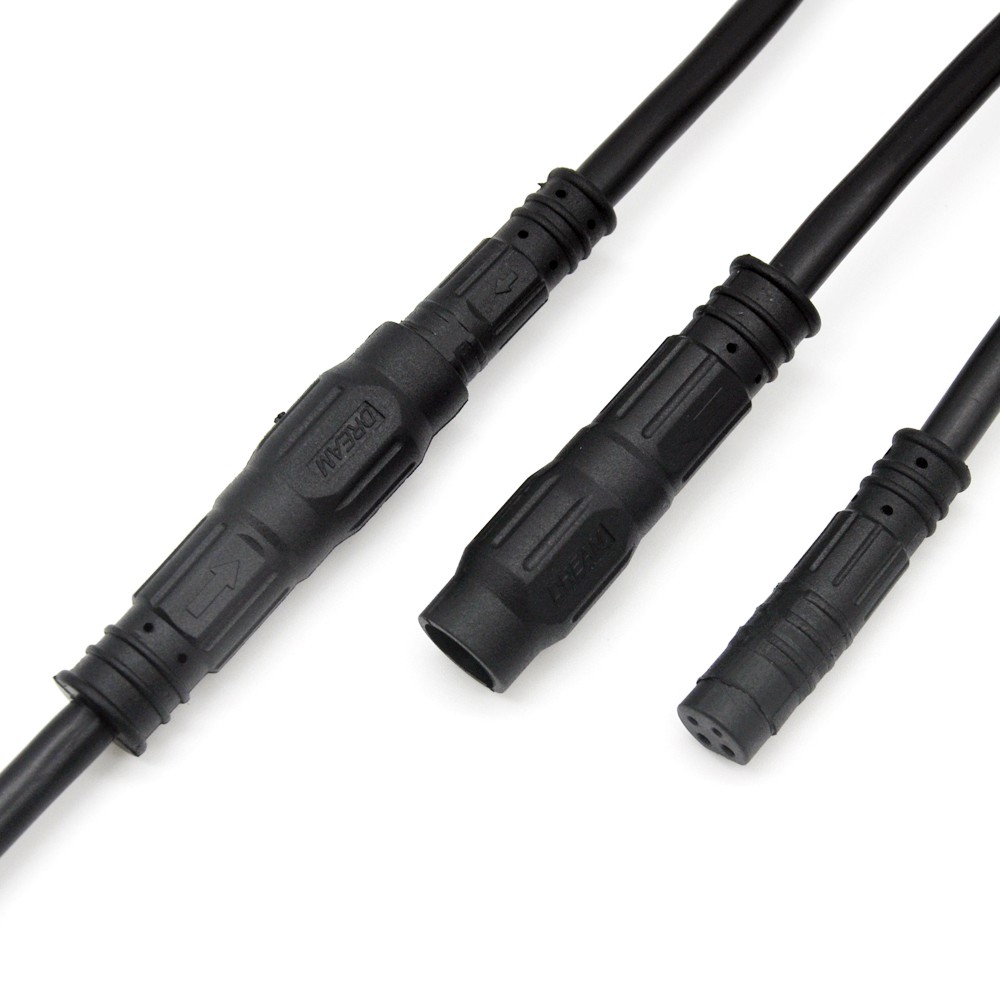

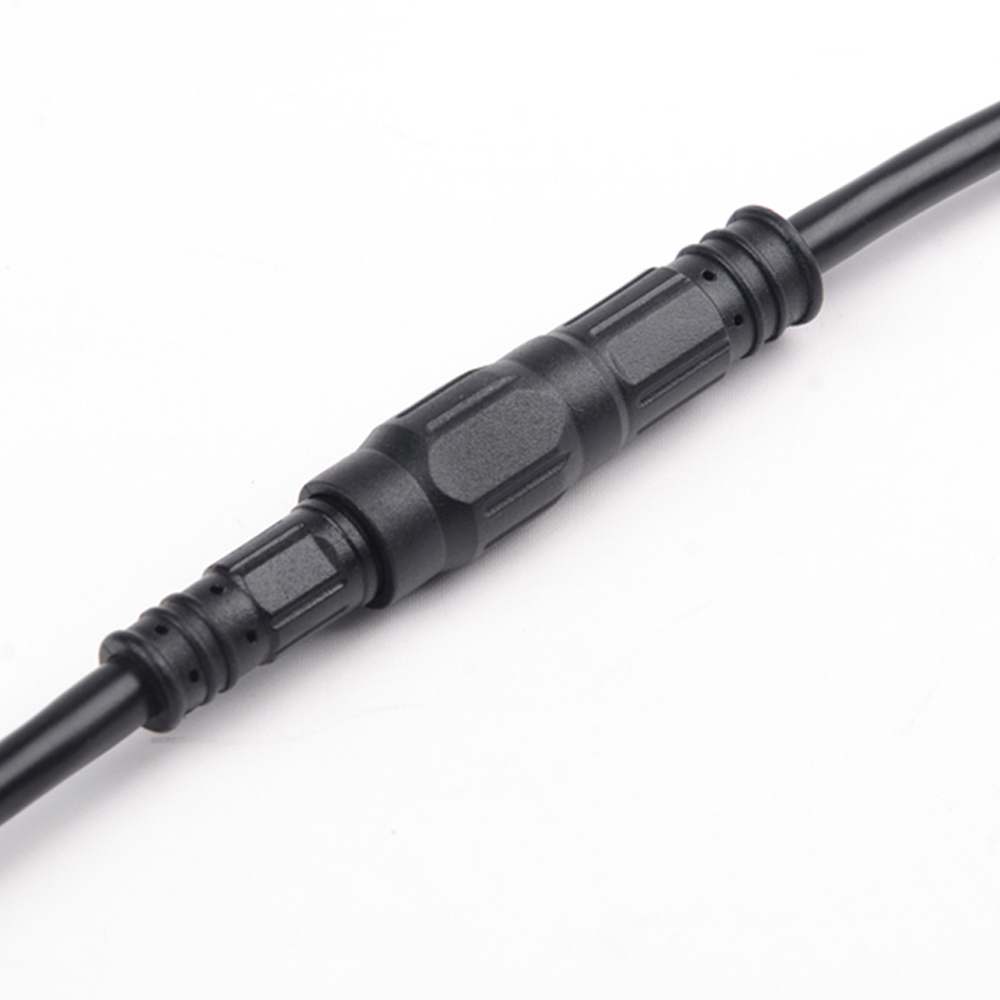

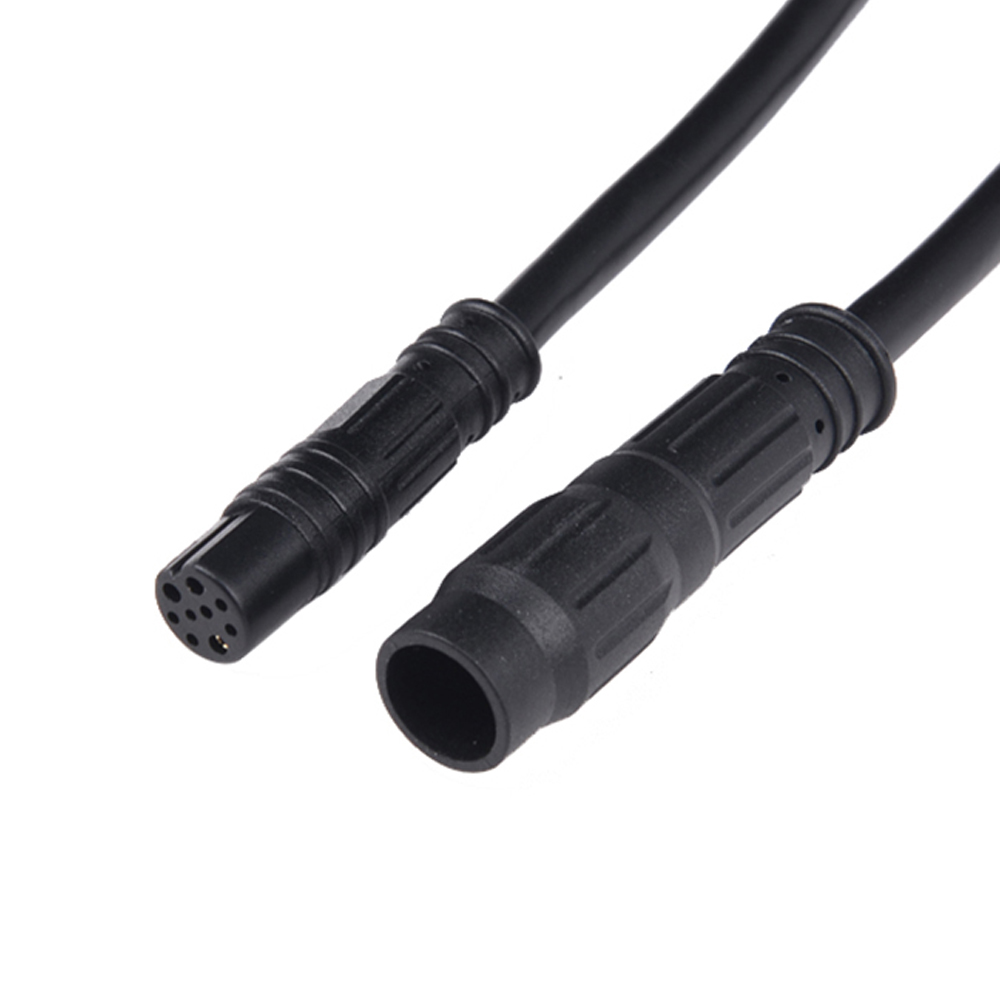

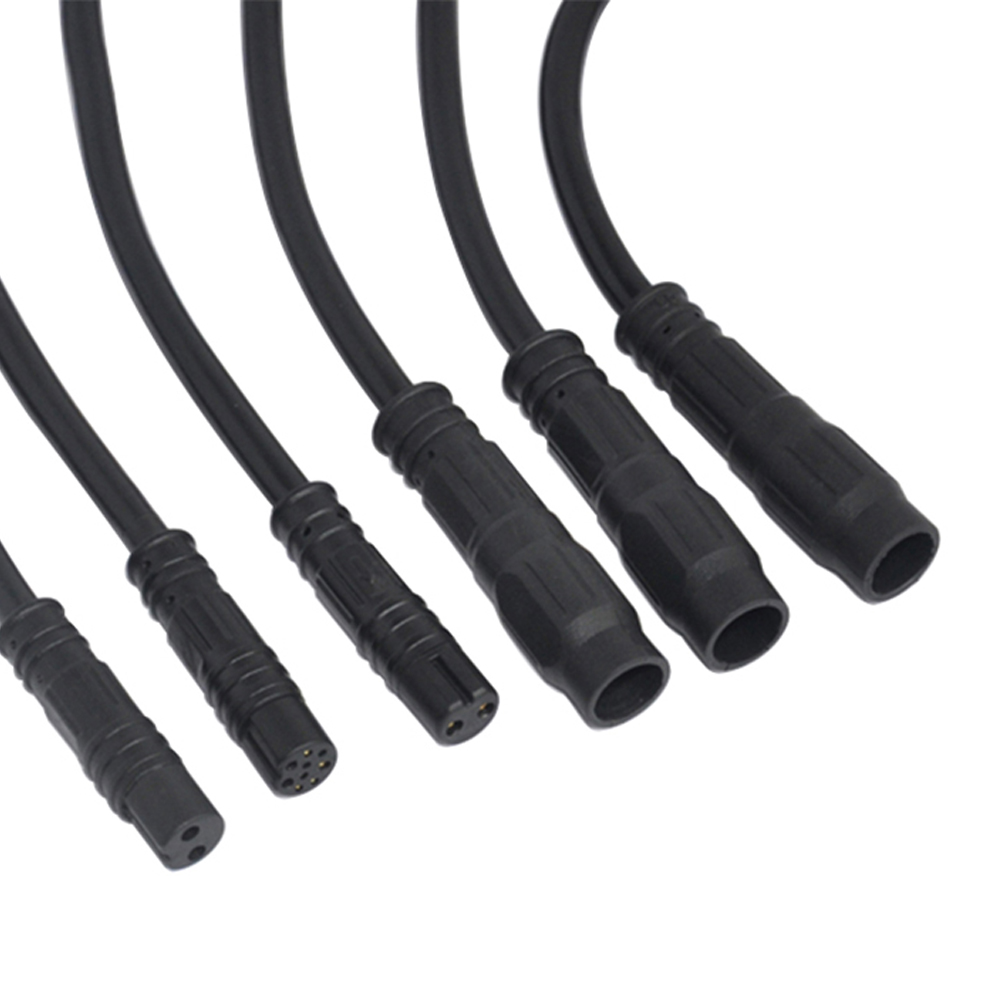

DREAM M12 Ebike 2Pin 4Pin 9Pin 2 4 9 Pin Motor Waterproof Cable Connector Ebike Bicycle Ebike Motor Connector

Mechanical PropertyContact Numbers2PinMale/Female Pin Diameter2*φ1.5mmOver-Mold MaterialPVC, TPUInsulator MaterialPA66Wire Gague24AWG----14AWGCable Rangeφ5.0---φ7.0IP RatingIP66Temperature Environment

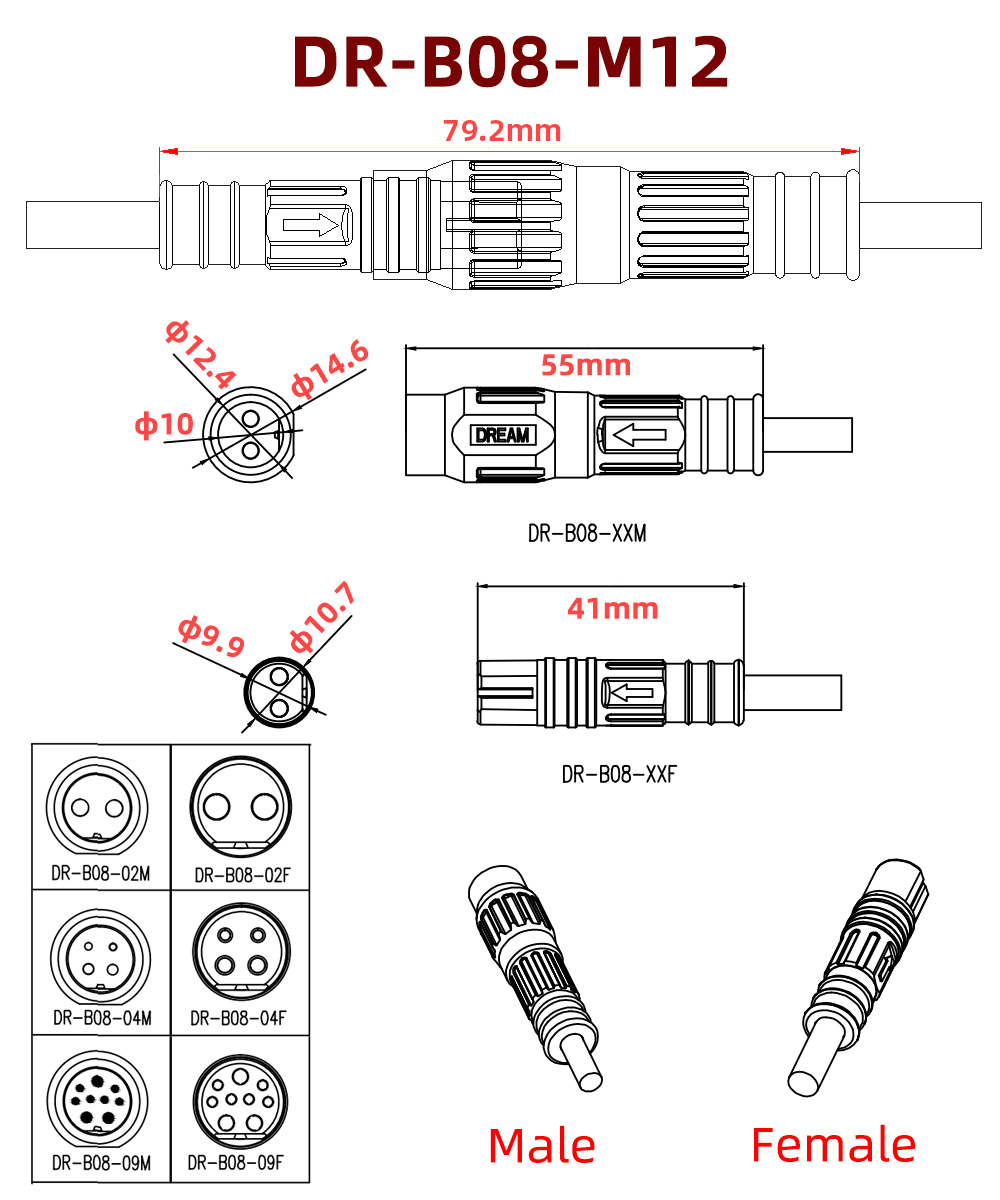

Product Modle： DR-B08

Click to Consult More Details

Contact Me Now

Email：sales@cnszdst.com

Can not see? Click to change verification code

Mechanical Property
Contact Numbers		2Pin
Male/Female Pin Diameter		2*φ1.5mm
Over-Mold Material	PVC, TPU
Insulator Material	PA66
Wire Gague	24AWG----14AWG
Cable Range	φ5.0---φ7.0
IP Rating	IP66
Temperature Environment	PVC:0~80℃; TPU: -40℃~+125℃
Mechanical Life	1000
Electrical Property
Rated Current		10A+2A
Rated Voltage		60V
Test Voltage		500V
Contact Resistance		10MΩ
Insulation Resistance		100MΩ
